Brand Name : SOGOO
Certification : CE, RoHS
Place of Origin : Guangdong, China
MOQ : 10 pcs
Price : sales@sogootech.com
Payment Terms : T/T; Paypal; Western Union
Supply Ability : 2000 pcs per week
Delivery Time : 3-20 days depends on quantity
Packaging Details : 10pcs in 1 Anti-static package, standard packing
Product Name : Outdoor tactical CPRI FC/SC FTTA Waterproof fiber patch cord
Length : 10m
Connector : FC/SC
Insertion loss : <=0.3 dB
Wire diameter : 7.0 mm
Cable mode : Armored
Features:
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
Typical Usages
3G, 4G base station
BBU, RRU, RRH, LTE
FTTA, FTTP, FTTX, WIMAX
Military, Mining and shipboard
Aerospace and Defense
Horizontal and Vertical Cabling
Typical Advantage
Waterproof and corrosion resistant
Field Installable
Armored Steel Tube for Rodent Resistance
With Big Capacity Data Transmission
Low Insertion Loss and High Return Loss
Performance Parameters
Connector | End A | LC,FC,SC,ST | ||
End B | LC, FC, SC, ST | |||
Cable Diameter(mm) | 7.0 | |||
Material of jacket | LSZH Black | |||
Fiber Core | 2 or 4 | |||
Mode | Singlemode | Multimode | ||
Operating Wavelength(nm) | 1310/1550 | 850/1310 | ||
Polishment | UPC | APC | UPC | |
Insertion Loss(Max.dB) | 0.3 | 0.3 | ||
Return Loss(Min.dB) | 50 | 35 | ||
Interchangeability(Max. dB) | 0.2 | |||
Durability(Max. dB) | 0.2 | |||
Repeatability(Max. dB) | 0.1 | |||
Operating Temperature(℃) | -40~+85 | |||
Storage Temperature(℃) | -40~+85 |
1. Factory Price
2. OEM
3. Fast delivery,low freight
4. Customize service
Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Usage
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Look forward to your inquiry on Outdoor tactical CPRI FC/SC FTTA Waterproof fiber patch cord.
![]() |

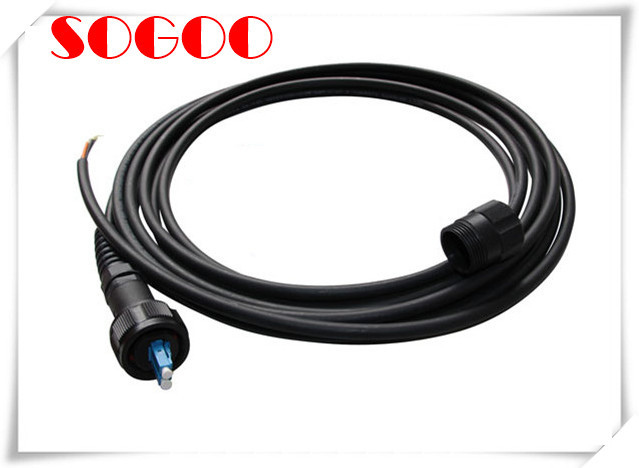

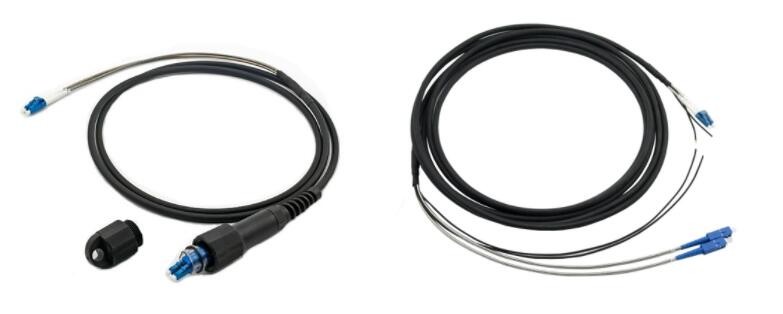

PDLC Outdoor Tactical Armored Fibre Optic Cable CPRI FC / SC FTTA Waterproof Images |
